FPM+FEE modules testing at Nevis Laboratories

• eLogs
• ToDoList:
  1. UPS setup
     1. Setup remote control with network card (support: Bill)
        1. ✔ Make connection (Bill sets up monitoring)
        2. ✔ Figure out remote controlling
     2. ✔ Connect: SiPMs PSU, Adapter PSU, PC, Fan, Function Generator, Laser driver

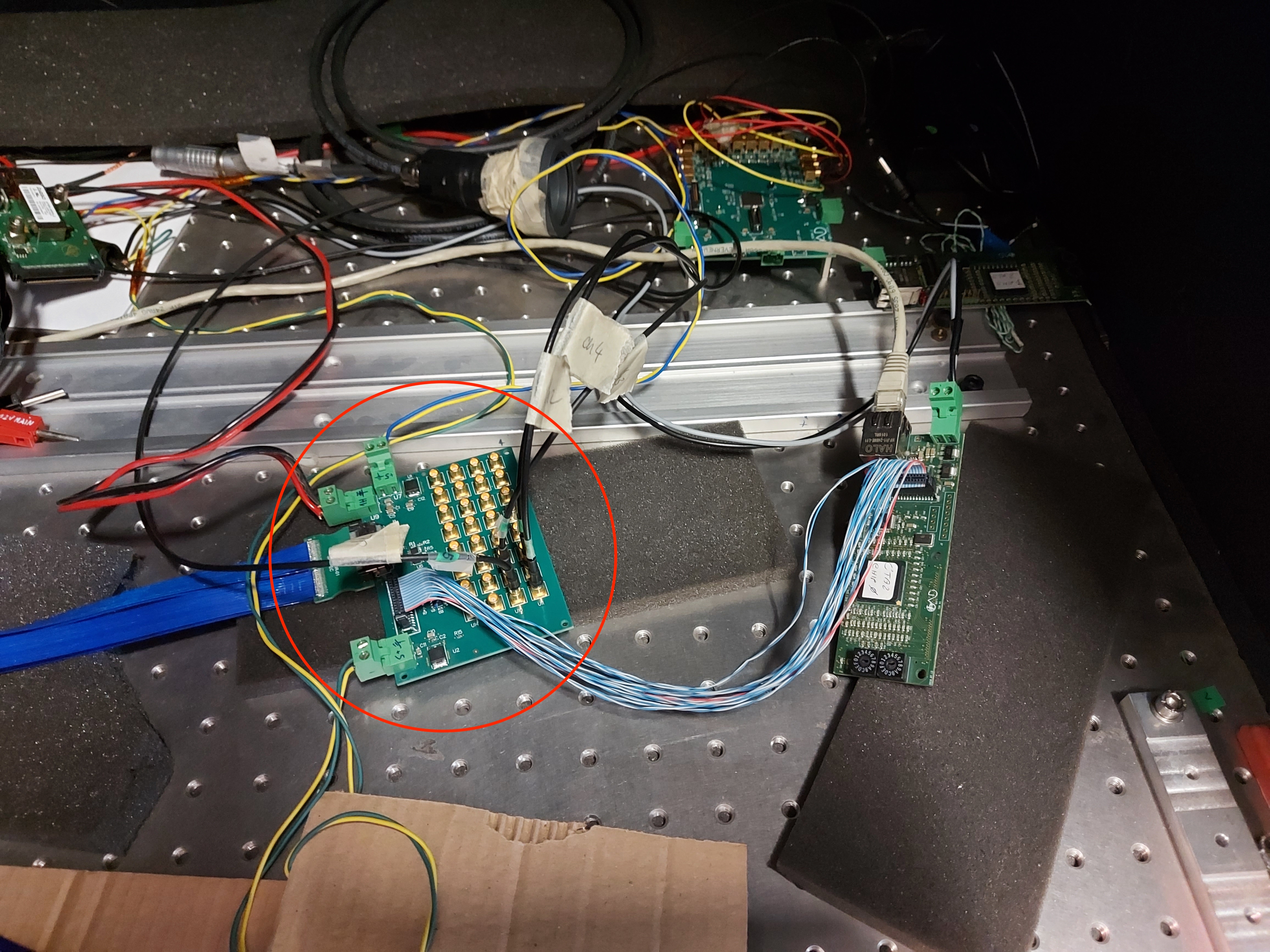

  2. ✔ Replace bias capacitors on SMART test board. See red circle in enclosed picture: 20201022_171019_MOD2.jpg (support: Nancy):
     1. C1, C3, C4: replace with 100nF, 100V (1206 package)
     2. C5, C6, C7: replace with 2.2uF, 100V (1206 package)
  3. Laser driver:
     1. Setup security switch on dark box
  4. ✔ PSU units:
     1. Write software for remote control. Basic functions: voltage r/w, compliance r/w, current r, enable control, channel select (for dual PSU)
        1. Software details written up in the 2020-12-09 eLog
  5. ✔ PC:
     1. Setup VNC server (support: Deivid)
  6. "Dark" tests:
     1. Connect Ham FPM to SMART + INFN Bari testing board; power up and look at scope signals
  7. "Light" tests:

Networking

• ctalab machine
  • # host odo
    odo.nevis.columbia.edu is an alias for ctalab.nevis.columbia.edu.
    ctalab.nevis.columbia.edu has address 10.44.2.10
    • MAC address: a4:bb:6d:45:08:64
    • Username: ctalab
    • Contact Massimo or Colin for password
  • Started ssh server following direction on this page:
    • https://linuxize.com/post/how-to-enable-ssh-on-ubuntu-18-04/
• Smart UPS
  • # host nevis-ctalab-ups
    nevis-ctalab-ups.nevis.columbia.edu has address 10.44.1.204
    • MAC address: 00:c0:b7:84:f6:f8
  • Webpage: http://nevis-ctalab-ups.nevis.columbia.edu/
    • Need to use VPN for the above URL to work (or you can run Firefox on tehanu).
    • See the UPS on Nevis' UPS monitoring page: https://www.nevis.columbia.edu/nut-cgi-bin/upsstats.cgi
    • Monitor the load on the Nevis Environment Monitor page: https://www.nevis.columbia.edu/environment/
  • account: admin
    password: ctaups

FPM+FEE assembly

• FEEM_assembly_2021_10_20.pdf

Parts List

• NevisLabsEquipment.xlsx
• Matrices frame and post holder (M. Mongelli - INFN Bari): Setup_test_schede.pdf
• FPGA board (Bari): TDR_schematic.pdf
  • 0 F --> IP address .6.15
• Head component (M. Mongelli - INFN Bari): Componente_di_testa_ridotto.pdf
• Hamamatsu SiPMs data sheet: S12642_Series_updated_datasheet.pdf
• PSU:
  • CPX400DP
    • Specs: TTi_PSU_CPX400_Series.pdf
    • Manual: CPX400DDP_Instruction_Manual-Iss13.pdf
  • EL302P-USB
    • Specs: TTI_PSU_EL_Series.pdf
    • Manual: EL302P-USB_Instruction_Manual-Iss7.pdf

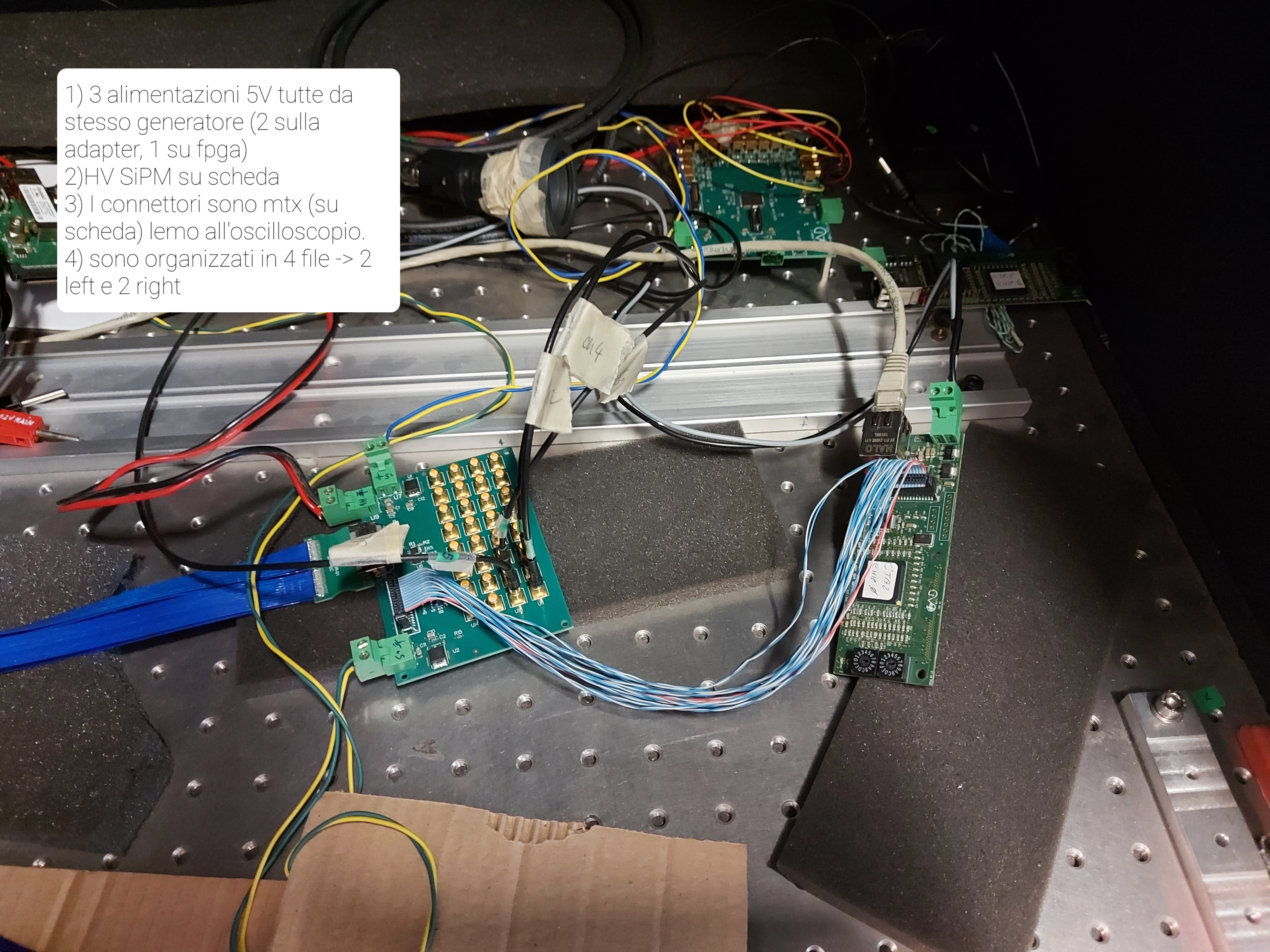

Lab Setup

1. Connect 3 biases of 5V all from the same power supply (2 on the adapter board, 1 on the FPGA)
2. Connect HV SiPM to adapter board
3. Connections are mtx on the board, lemo on the scope
4. Organized in 4 rows, 2 for each SiPM tile connected

1. screw the cube on the copper finger
2. screw the matrix
